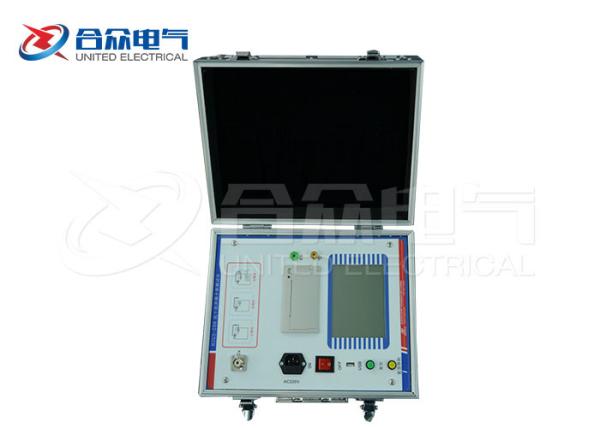

Anti Interference Inter - Frequency Dielectric Loss Transformer Testing Machine

Name: Anti Interference Inter Frequency Dielectric Loss Transformer Testing Machine
Brand: United electrical
Price: 1 USD

China Anti Interference Inter - Frequency Dielectric Loss Transformer Testing Machine wholesale

Brand Name : United electrical

Model Number : HZGS-206

Certification : ISO9001, ISO14001, OHSAS18001

Place of Origin : Wuhan, China

MOQ : 1 pcs

Price : negotiable

Delivery Time : 10 working days

Packaging Details : 1 pcs / wooden box with wrapping film

Accuracy : tg δ: ±(read*1.0%+0.04%) Cx: ±(read*1.0%+5PF)

Resolution : tg δ: 0.01%; Cx: 1pF

Measurement Range : 0.1%

Power Source : AC220V±10%, 50/60±1Hz

Working Condition : -15℃~50℃, relative humidity: <80%

Warranty : 1 year

Contact Now

Anti-interference Inter-frequency Dielectric Loss Transformer Testing Equipment

Product Description:

HZGS-206 auto anti-interference dielectric loss tester is a high precision instrument which the power plant and substation use to automatically measure the dielectric loss tangent values and capacitance.

Product Features:

◆ Use converter technology to ensure the accurate measurement under strong electric field interference.

◆ With positive and negative connecting ways measure ground or non-ground high voltage electrical equipment. Also can measure the capacitance voltage transformer tgδ and the main capacitor C1,C2 capacitance.

◆ Equipped with high voltage boosting transformer, and voltage zero-crossing switch off, lightning protection ect.

◆ Can take measurement for CVT transformer.

Product Parameters:

High voltage Output 0.5~10kV for each gear increase 500V, total 10 gears, capacitance: 1500VA

Accuracy tg δ: ±(read*1.0%+0.04%) Cx: ±(read*1.0%+5PF)

Resolution tg δ: 0.01%; Cx: 1pF

Measurement Range
0.1%<tg δ<50% 3PF<Cx<60000PF when 10kV,

Cx≤30000PF when 5kV, Cx≤60000PF

Power Source AC220V±10%, 50/60±1Hz

Working Condition -15℃~50℃, relative humidity: <80%

Quality Guarantee: One year quality guarantee after shipment.

Product Tags:
transformer testing machine

transformer test instruments

Anti Interference Inter - Frequency Dielectric Loss Transformer Testing Machine Images
